- WS-N151BS
- 1/3” progressive scan CMOS 4 ...
)
- 1/3” progressive scan CMOS
- 4 mm fixed lens (2.8mm optional)
- Max resolution 5MP (2560×1920) @20fps
- DWDR, 3D DNR, HLC, BLC, Defog
- Support intrusion and line crossing based on human detection
- Built-in Microphone and Speaker

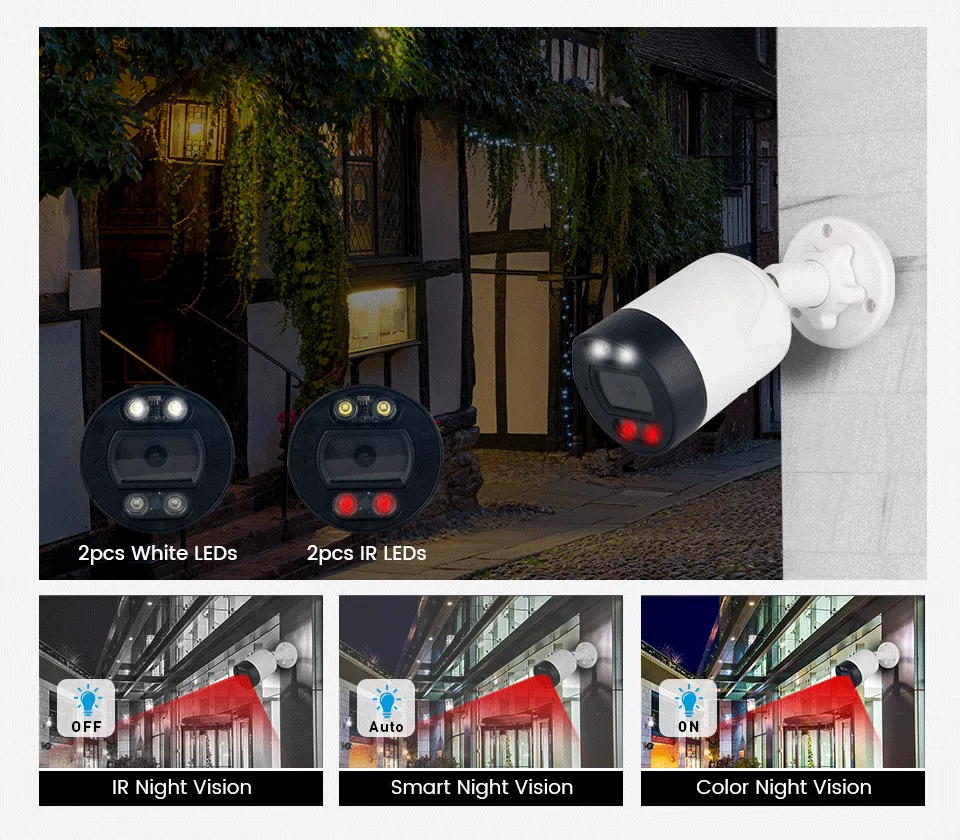

- Built-in IR LED and warm lights, illumination distance up to 30m
- 12V DC/PoE power supply

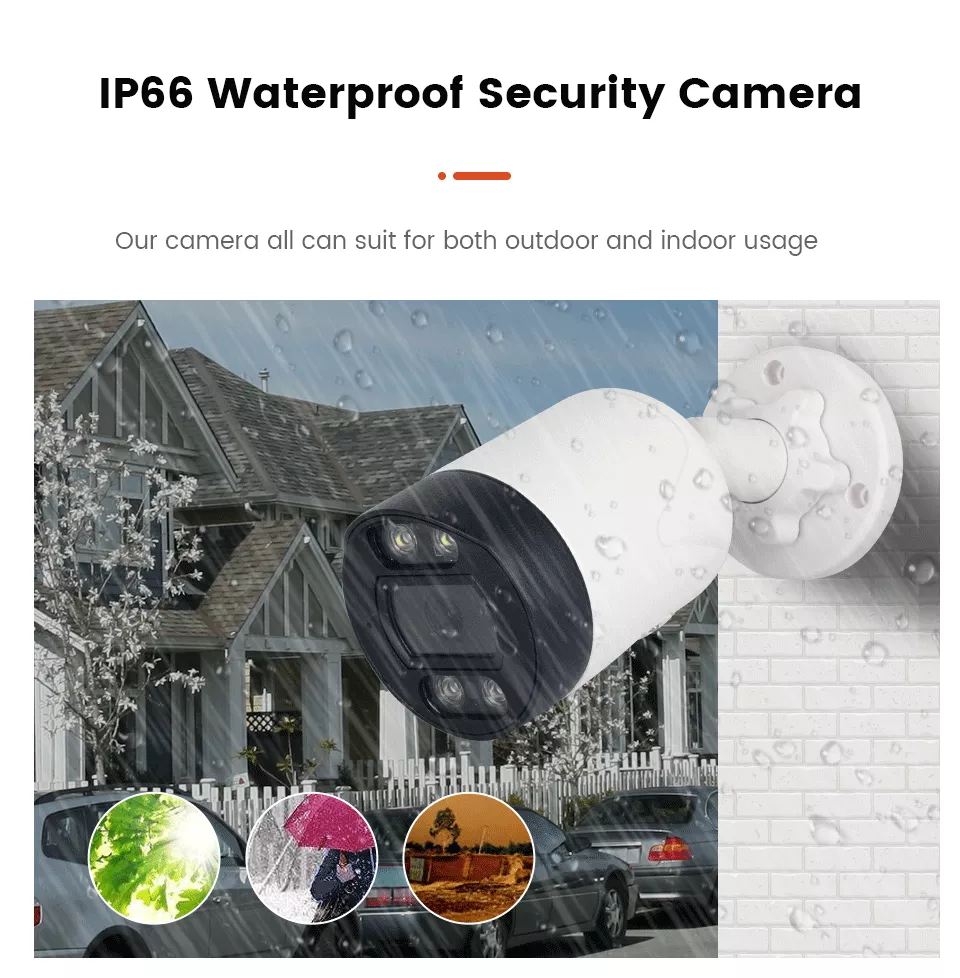

- IP66
Camera | ||
Image Sensor | 1/3” Progressive Scan CMOS | |
Electronic Shutter | Auto/Manual, 1/5 ~ 1/20,000s | |
Min. illumination | Color: 0.1 Lux @ (F1.6,AGC ON) , B/W: 0 Lux @ (IR LED ON) | |
S/N Ratio | 55 dB | |
Day & Night | IR cut filter | |
Illumination Distance | IR distance up to 30m (98.4 ft) White light distance up to 30m (98.4 ft) | |
Illumination On/Off Control | Auto/Manual | |
Pan/Tilt/Rotation Range | Pan: 0˚ ~ 360˚, Tilt: 0˚ ~ 90˚, Rotation: 0˚ ~ 360˚ | |
Lens | ||
Lens Type | Fixed focal | |
Iris | Fixed Iris | |
Focal Length | 2.8 mm | 4 mm |
F Number | F2.0 | F1.6 |
Angle of View | H: 93.2°, V: 50.2° | H: 80.6°, V: 41.5° |
Video and Audio | ||
Max. Resolution | 2560(H)×1920(V) | |
Streaming Capability | 2 Streams | |
Main Stream | 2560×1920, 2560×1440, 2304×1296, 1920×1080, 1280×720, 704×576 @ 20fps | |
Sub Stream | 640×360 @ 20fps | |
Bit Rate Control | CBR/VBR | |
Bit Rate | Main Stream: 512kbps ~ 6144kbps Sub Stream: 128kbps ~ 1536kbps | |
Audio Compression | G.711 (64kbps) | |
Image | ||
Image Adjustment | Brightness, Sharpness, Contrast, Saturation | |
White Balance | Auto/Manual | |
Mirror | Support | |
Exposure Mode | Auto/Manual | |
Day/Night Setting | Auto, Day, Timing | |
Noise Reduction | 2D/3D NR | |
Image Enhancement | HLC, BLC, Defog | |
Wide Dynamic Range | DWDR | |
Privacy Masking | Support | |
Alarm Event | |
Motion Detection | Support |
Intelligent Analysis | Intrusion and Line crossing detection based on human detection |
Network | |
Protocols | IPv4, RTSP/RTP/RTCP, TCP/UDP,DHCP, DNS, DDNS, UPNP, ICMP, IGMP, NTP, SMTP, 802.1x, SNMP, HTTP/HTTPS, PPPOE |
Interface Protocol | ONVIF, SDK |
Max. User Access | 4 Users |
Web Viewer | <IE11, Chrome, Firefox, Microsoft Edge |
English, Chinese (Simplified), French, Korean, Polish, Italian, Spanish, German, Hungarian, Russian, Vietnamese, Thai, Danish, Czech, Slovak, Indonesian, Portuguese, Dutch, Hebrew, Arabic | |
Interface | |
Network Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
Built-in Microphone | Yes |
Built-in Speaker | Yes |
SD Card Slot | Built-in, up to 256GB |
Reset Button | Support |
Electrical | |
Power Supply | DC12V(-15%~+25%)/POE (IEEE 802.3af) |
Power Consumption | Max 5.5 W |
Operating Temperature | -25°C ~ 55°C (-13°F ~ 131°F ) |
Operating Humidity | Less than 90% RH |
Ingress Protection | IP66 |
Certifications | CE/FCC |
Casing | Metal |
Dimensions | φ70×172mm |
Net Weight | 0.35kg |
